41518
41518

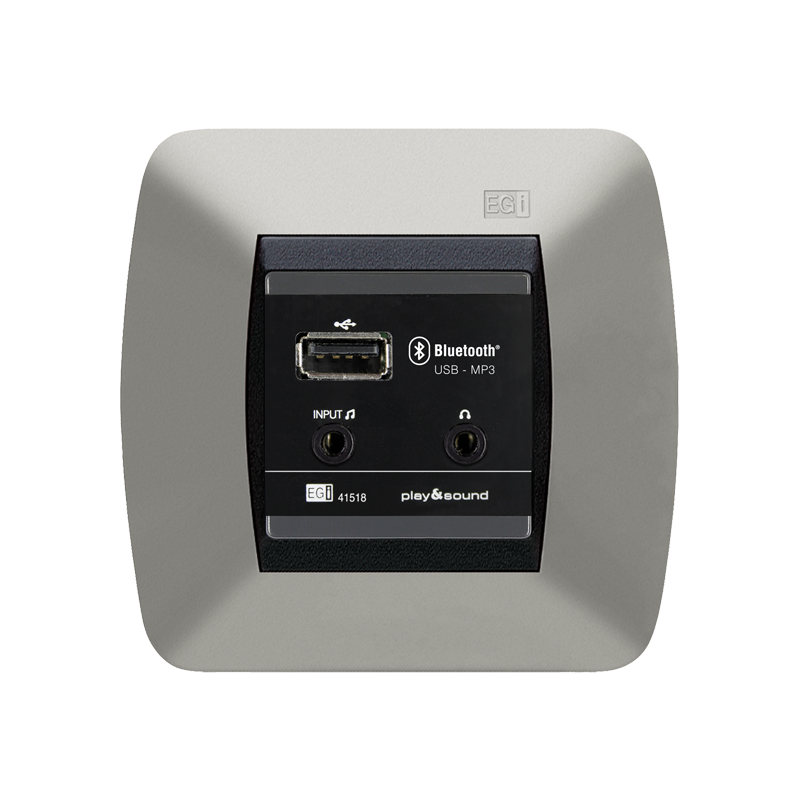

Audio input, USB, bluetooth® and headphones output

Audio input for connection to module 41513. Line In, USB, headphones output, and Bluetooth®

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

Auxiliary module ONLY for Wall Radio 41513.

1 Audio input and 1 headphones output.

Built-in 3.5 mm jack input to connect any audio source (MP3, audio equipments, CD, DVD or PC). Compatible with some audio players such as Creative® or iPod®.

Built-in USB input to play MP3 or WAV files on your home audio installation. Just insert any mass storage device (such as portable 2.0C hard drive or USB key) and get into the USB menu of the 41513.

Built-in headphones output. Plugging in your stereo headphones automatically disconnects the loudspeakers in the room.

Bluetooth® wireless audio connections through the 41513 menu activation.

Finish: black.

TECHNICAL DATA

  • Main power input From 41513 module
  • Consumption (max) 175 mA
  • File formats MP3; WAV
  • USB output level (max) 100 mA
  • Input impedance 10 KΩ
  • Nominal audio input level 100 mV
  • Headphones output impedance 32 Ω
  • Nominal headphones output level 300 mV
  • Housing ø60 mm box
  • Dimensions (mm) 45 x 45 x 52
