41515

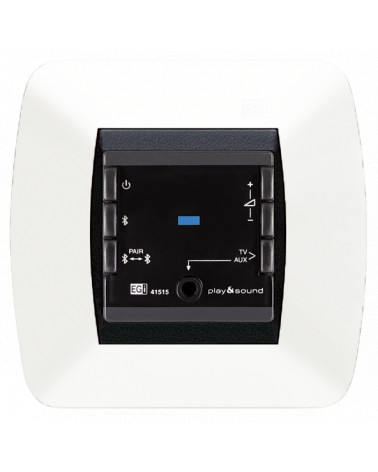

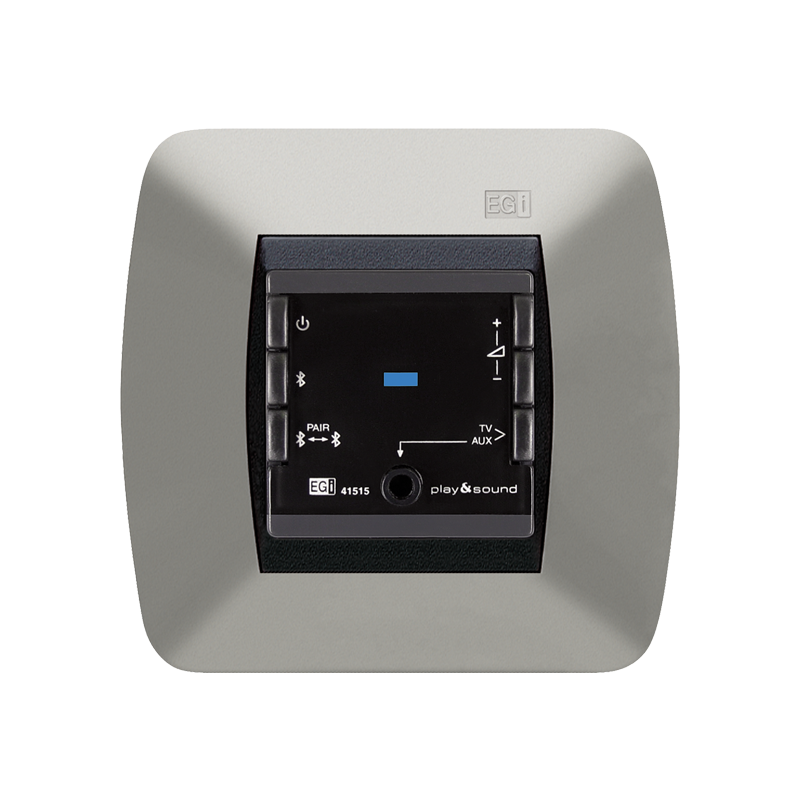

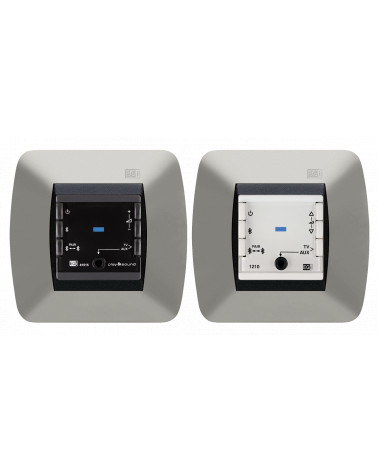

Bluetooth ® module unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.

Bluetooth® control unit with AUX/TV audio input and PIN (priority input)

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

Sound control unit with independent power supply, 3 audio sources input (bluetooth®, AUX and TV), stereo amplifier and priority calls input.

AC multivoltage main power supply to 115/230 V~ and 50/60 Hz.

Stereo bluetooth® 4 version receiver with A2DP-SINK profile and 8 storable links.

Front AUX audio input via 3.5mm stereo Jack input.

Rear audio input terminal strip for stereo TV.

Memory for 8 bluetooth® devices with active memory and erasing function to add new bluetooth® devices.

Bluetooth® access by just pressing a button, instead of introducing a PIN access code.

Power on or stand-by, by a short touch.

32-step up/down digital volume control by 2-dB jumps.

Direct stereo amplified output for speaker connection or stereo output to an audio stage that amplifies the signal, either individually or simultaneously.

PIN input for signals with priority calls over all audio sources.

Multicolor led status indicator (Blue for bluetooth®.Green for TV. Yellow for AUX and Red for priority calls).

Finish: black.

TECHNICAL DATA

  • Display Multicolor led
  • Main power input 115/230 V~; 50/60 Hz
  • Consumption (max) 7 W
  • Consumption stand-by 0.2 W
  • Sensitivity inputs AUX and TV 500 mVRMS
  • Sensitivity input PIN 3 V~ RMS + 7 V
  • Input impedance 10 KΩ
  • Loudspeaker impedance (min) 16+16 Ω
  • Max. power 2+2 WRMS audio
  • Housing ø60 mm box
  • Dimensions (mm) 45 x 45 x 52
