1315
1315.A

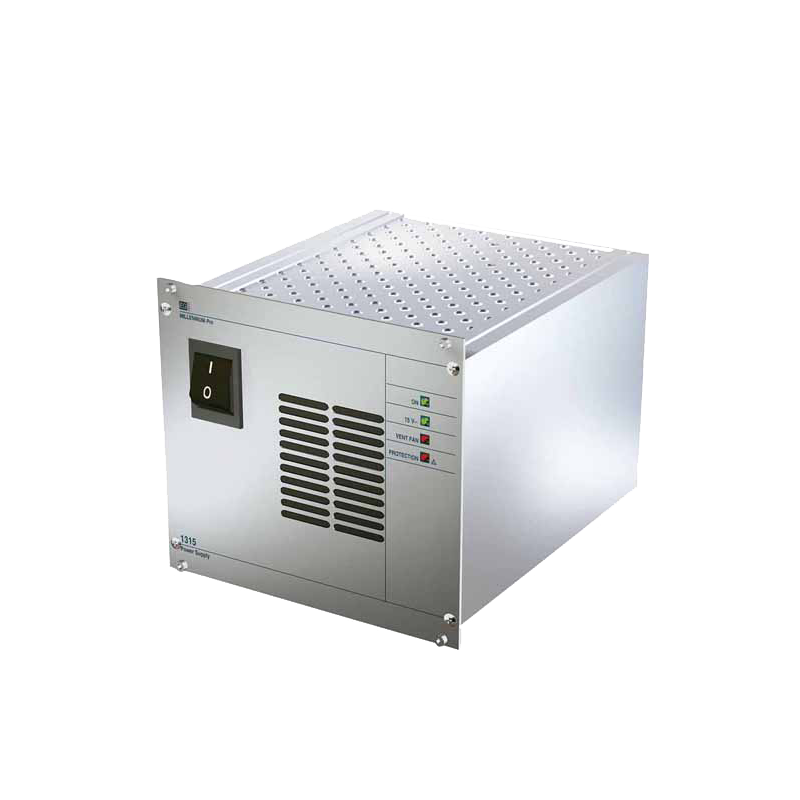

120 W Power supply unit for 15V-to 7 Millennium Pro centralized modules.

120 W power supply unit for 15 V. It takes 28 ups. It can feed 7 x 20 W, 15 V amplifiers. Aluminium front. 230 V front main switch. Front LED indicators displaying.

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

120 W; 15 V Power supply.

It takes 28 UP of rack space.

Up to 7 devices (15 V operating voltage) of a maximum total consumption of 120 W (8 A) can be supplied.

Aluminium.

Technical data

  • Power supply 230 V~; 50/60 Hz
  • Current consumption (@ max. power) 0.93 A
  • Current consumption (@ typ. power) 0.36 A
  • Output voltage 7 x 15 V
  • Max power per output 1.1 < 2 A (PTC limited)
  • Rack units 28 UP; 3 UA
