2-Channel control unit 2,5W+2,5W OR 5 W RMS with override message. White

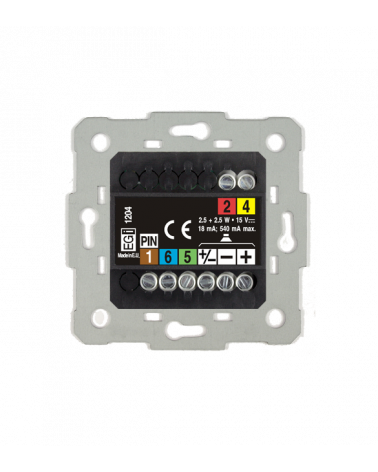

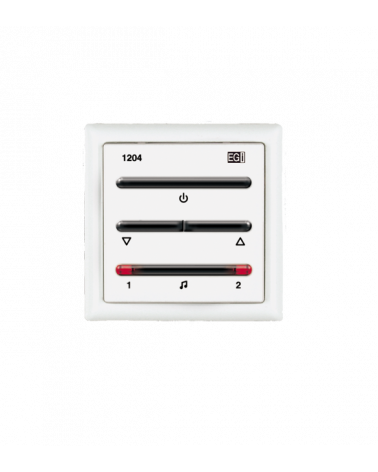

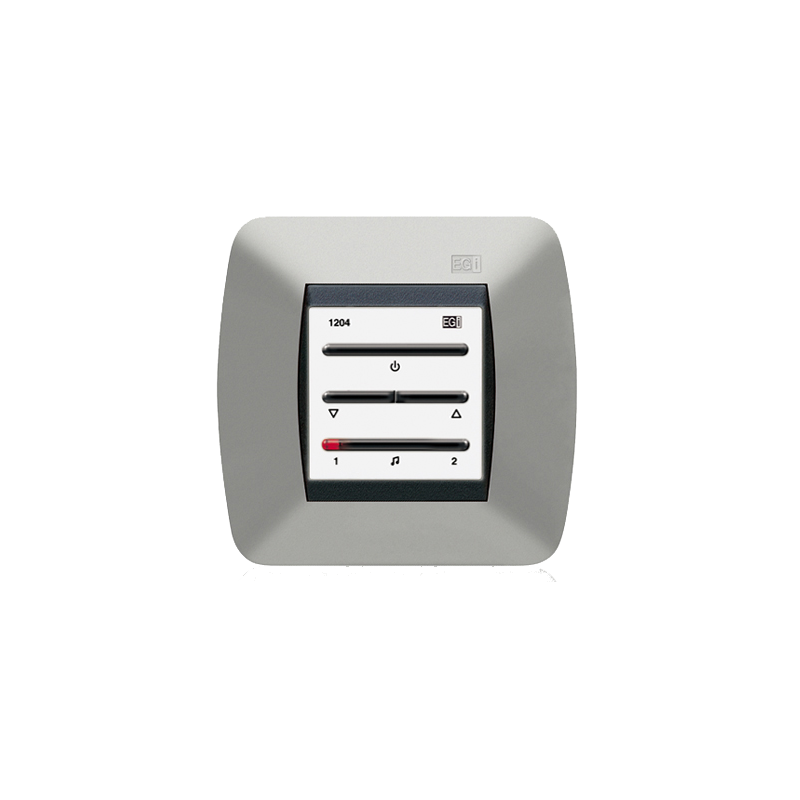

2-Channel control unit. 5 W RMS power to connect from 1 to 8 loudspeakers. Digital volume with 80 1dB steps with loudness. Recognises number of channels in the installation and adapts its selector to them. Message override. For use in Millennium (stage 1) general line. White colour

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

2-channel control unit. 5 W, 1-8 speakers. Message override.

2-channel control unit, 5 W power for connecting from 1 to 8 speakers.

Digital volume regulation with 80 steps of 1 dB and loudness.

It recognizes the number of channels in the installation and adapts its selector for them.

Unconditional message priority.

To be connected to audio processor 1301.1 only.

1204.10 (white). 1204.12 (black).

Technical data

  • DC Power supply 15 V
  • Current consumption (@ max. power) 550 mA
  • Current consumption (@ typ. power) 335 mA
  • High power output (+ and .) 5 W; minimum line impedance 16 Ω
  • Low power output between the terminals (+ and +/.) or (. and +/.) 2 x 2.5 W; minimum line impedance 8 Ω
  • Housing ø60 mm.
  • Dimensions (mm) 45 x 45 x 52
