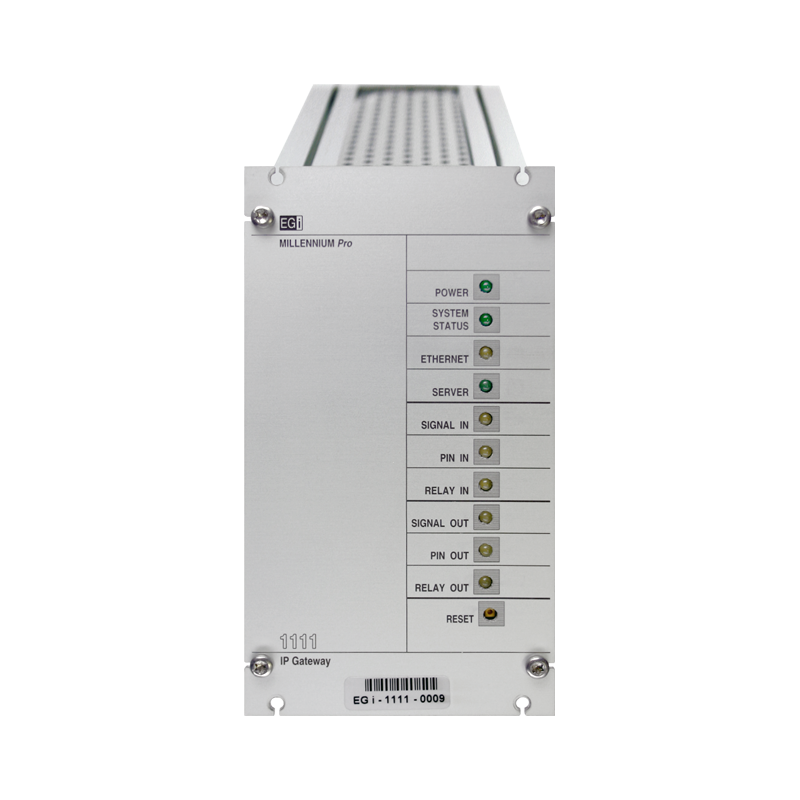

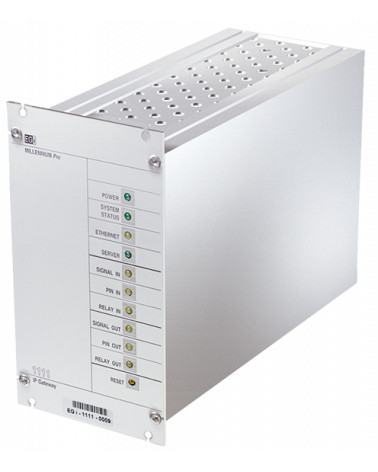

1111 Módulo de audio IP

1111

IP Gateway for calls messages and music by Ethernet

For calls messages and music by Ethernet



Do you have questions about this product? Contact our support:



sat_consultas@egiaudio.com

Audio interface module via Ethernet IP networks, with Mono-Hi-Fi audio quality. Operation message priority on environmental music. 3 types of function:

  • - Customer VoIP, Unicast or Multicast.
  • - Gateway IP Hi-Fi sound audio quality similar to mono CD in Multicast.
  • - Hi-Fi Player music: Local or Internet streaming, through differents extensions files like (WAV, MP3 ...) and Internet radio.

Internal memory and network hard disk 8 GB for audio. RJ45 connection at 10/100 Mb Ethernet speed. USB 2.0 connection for future applications. Upgradeable firmware. Configuration via web page. Remote control from multimedia equipment as smartphone, tablet and PC. Power supply 15 V  via standard coaxial connector or terminal block. Audio input and output XLR connectors or PIN strips. Auxiliary input function and relay output. Finish: aluminium.

1111

Data sheet

Supply
Maximum consumption
Input and output XLR sensitivity
0.3 - 1.2 Vac (audio)
Network speed
Rack units
