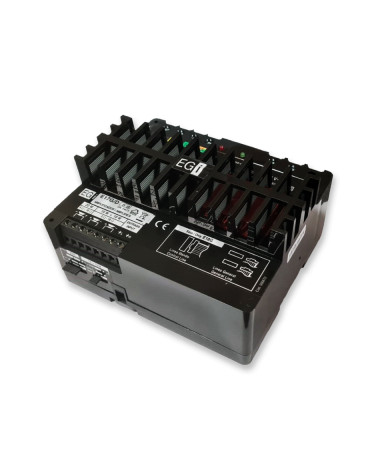

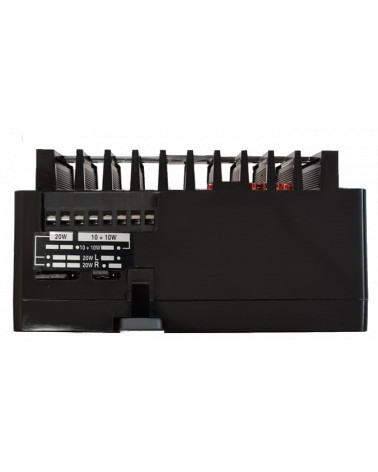

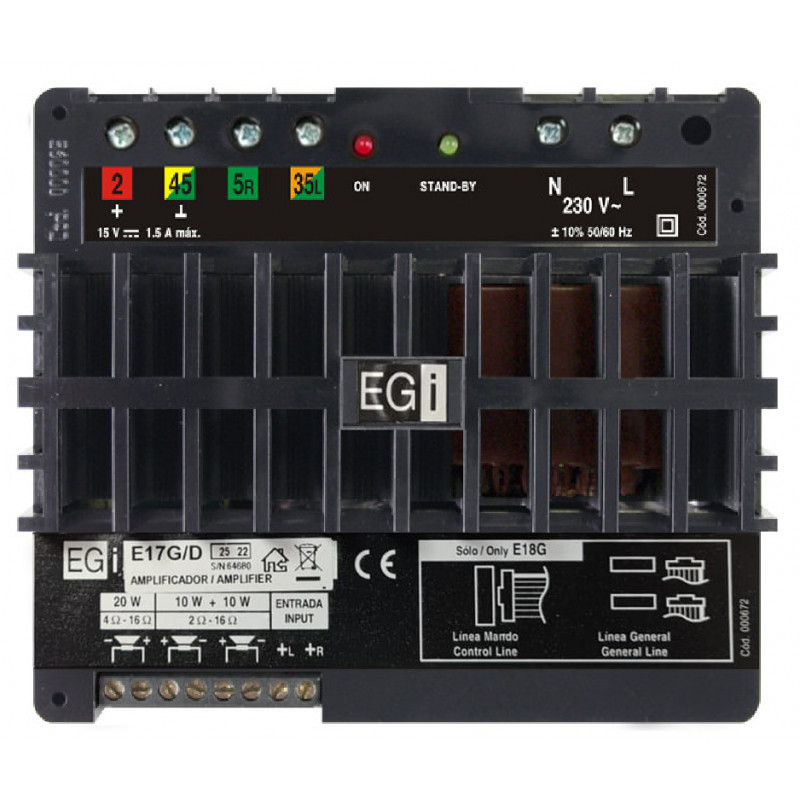

E17G/D

Stereo/mono amplifier 10 W + 10 W (2 Ω) or 20 W (4 Ω)

Designed for those installations where high audio power is needed. It can be installed on 35 mm rail or false ceiling. If central unit is switched off, it goes into stand-by mode. Up to 4 amplifiers can be connected to a control unit



Do you have questions about this product? Contact our support:



sat_consultas@egiaudio.com

Mains power suply 230 Vca +/- 10% 50/60 Hz Consumption 2,5 VA (max. 36 VA) DC output 15 Vcc 1,5 A (max.) Audio Power (RMS) 10+10 W (2 Ω) 20 W (4 Ω) Speaker Impedance from 2 Ω Maximum number of E17G/D modules per installation 4 u. Dimensions 125 x 110 x 70 mm. Weight 0,94 Kg

E17G/D
