1501.10

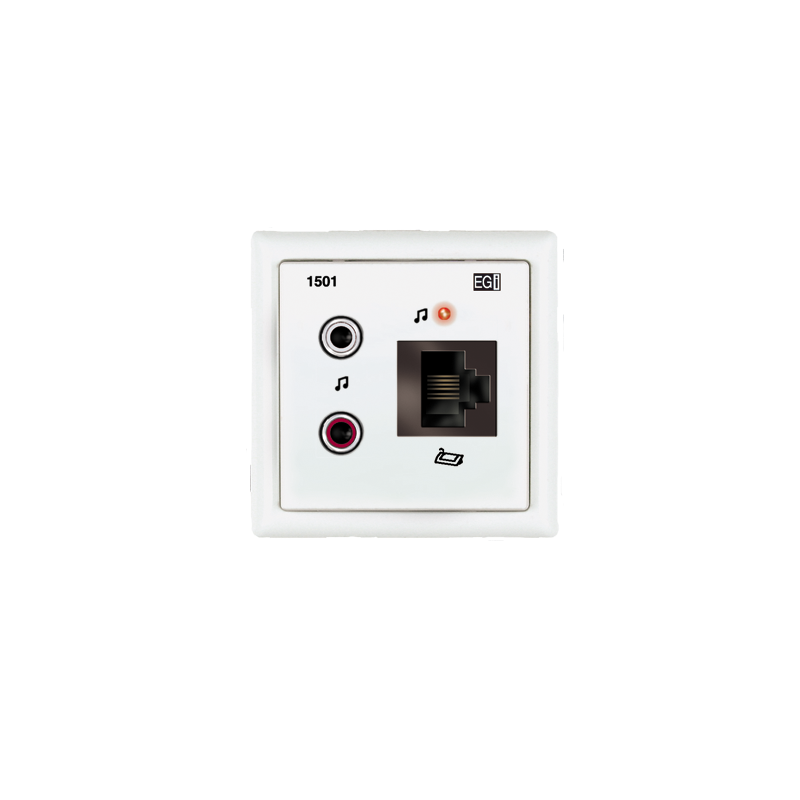

Connection base for control console/audio source. White

Connection base to connect 1201.11 controllers, 1202 and music sources located far away from the
audio processor.

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

RCA audio input with compressor to connect an external music source to the sound installation.

Signal presence indicating lamp.

TECHNICAL DATA

  • Power supply 15 Vdc general line
  • Maximum consumption 80 mA
  • Input sensitivity 20 KΩ
  • Input impedance 316 mV a 3.16 V
  • Housing Ø60mm
  • Dimmensions (mm) 45x45x52
