Control console for 127 zones

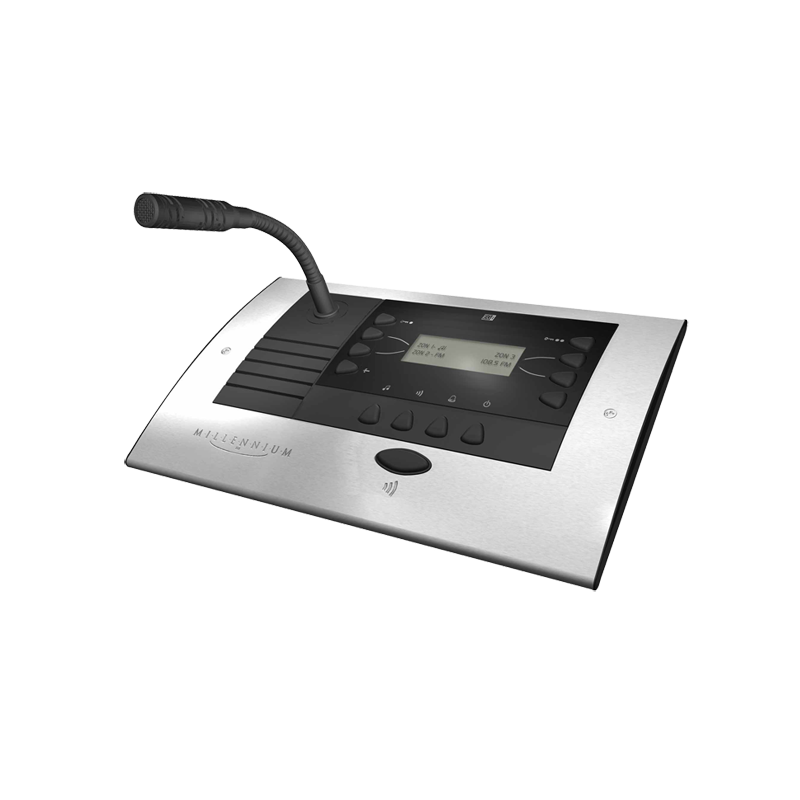

Control console for 127 zones with built-in microphone, keyboard and display.

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

Control console for 127 zones with built-in microphone, keyboard and display.

It control music, messages and features such as volume, equalization and automatic messages in each zone or group of zones, individually or globally, for sound installations of up to 127 zones.

Built-in 2″” loudspeaker 32Ω for answering messages.

Menu of operation with the help of a 4 line – 16 character display.

It allows to program the whole system.

Finish: black and aluminium.

Technical data

  • Power supply 15 V
  • Current consumption (@ max. power) 180 mA
  • Frequency response 20 ÷ 12000 Hz
  • Dimensions (mm) 250 x 175 x 85 (without neck)
