Kit XS audio Bluetooth®, master 6+6W formato balasto y 2 altavoces HQ de 3″

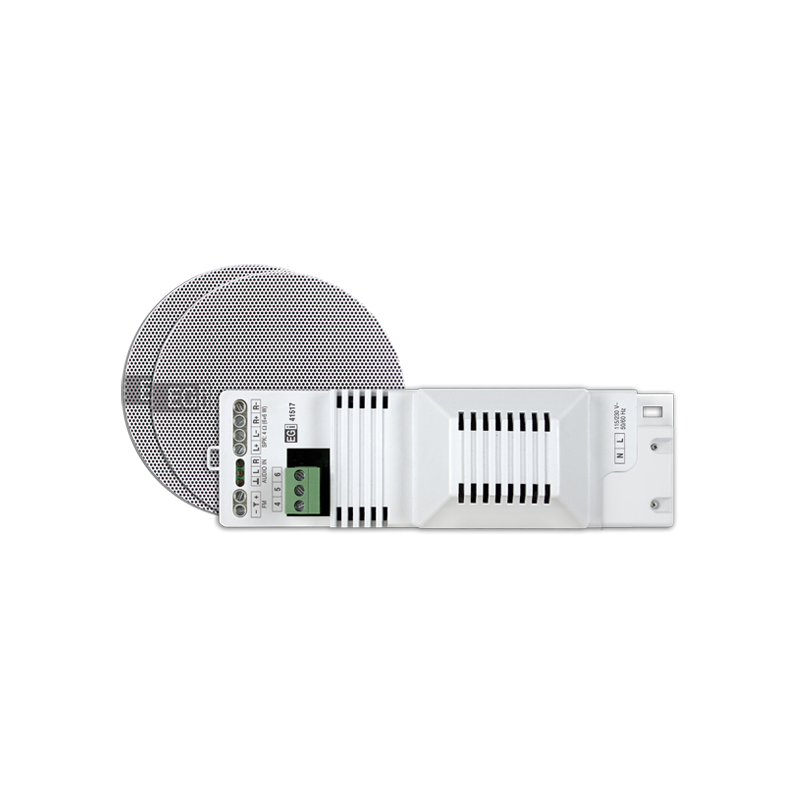

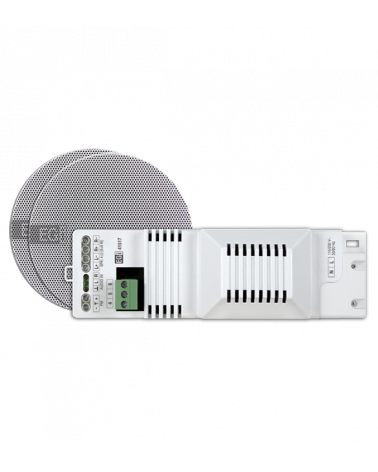

XS Kit audio bluetooth®, master module 6+6W ballast and two 3” HQ loudspeakers

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

Hidden master amplifier module with independent bluetooth® connectivity.

Multiroom function to listen music of other master modules from other rooms, using only 3 wires and through 41514 remote control.

Direct connection to 115/230 V~.

Stereo output per channel 2 x 4 W loudspeakers (1 per channel), 6 W per loudspeaker (speaker cable included).

Other connections:
– 8 x 16 W loudspeakers (4 per channel), 1.5 W per loudspeaker.
– 16 x 32 W loudspeakers (8 per channel), 0.75 W per loudspeaker.

2 x 3″, HQ audio loudspeakers, with white metallic grille and fixing springs.

Built-in connector for external FM antenna.

FM/RDS, auxiliary INPUT, multiroom service, clock and alarm controlled only by 41514 remote control.

Compact format for ø65 mm holes, for an easy way to placing in false ceiling or walls.

Finish: white.

TECHNICAL DATA

  • Power supply 115/230 V~; 50/60 Hz
  • Consumption max 200 mA (115 V~) / 100 mA (230 V~)
  • Consumption stand-by 0.3 W
  • FM band 87.5 – 108 MHz
  • Bluetooth® profile V. 2.0; Clase II; A2DP & AVRCP (1.3)
  • Max. power output 6+6 WRMS; (12+12 WPEAK máx.); 4 Ω min.
  • INPUT 3 V~ RMS + 7 V
  • Impedance INPUT 10 KΩ
  • Mechanical format Electrical ballast
  • Size cutting ø65 mm.
  • Weight (Kg.) 0.162
  • Dimensions (mm) 170 x 48 x 50
