1107.10 con embellecedor1107 trasera

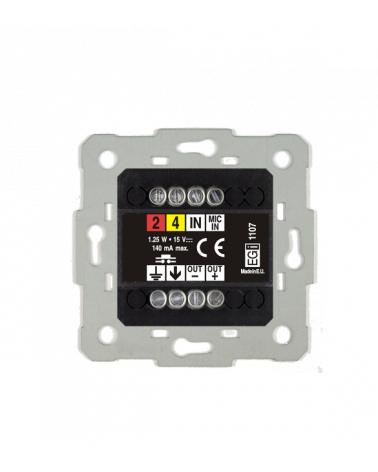

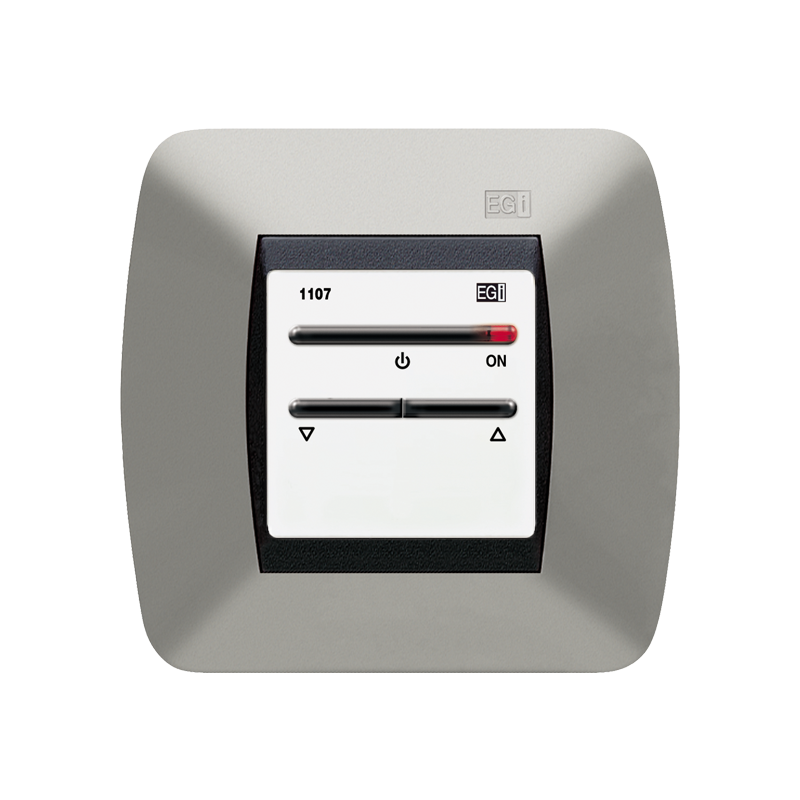

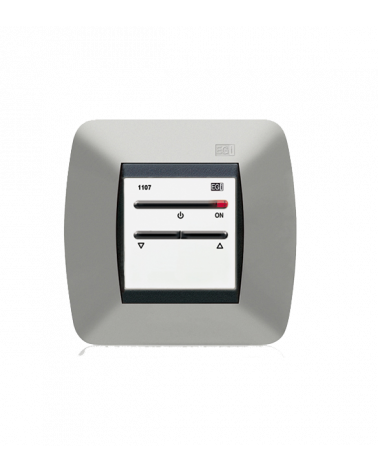

1107.10

Volume regulator for 1105.10 base

1105.10 microphone base volume adjustment.

Share on Google+Tweet about this on TwitterShare on Facebook

Specifications

ON push button with LED indicator.

Digital volume regulator in 80 1 db steps.

Dual polarity pushbutton input for manual activation of microphone.

Self-mixing up for to 5 units.

White colour

TECHNICAL DATA

  • Power supply 15 Vdc
  • Maximum consumption 150 mA
  • Input impedance 20 kΩ
  • Input sensitivity -
  • Power output RMS 1.25 W
  • Minimum load impedance 16 Ω
