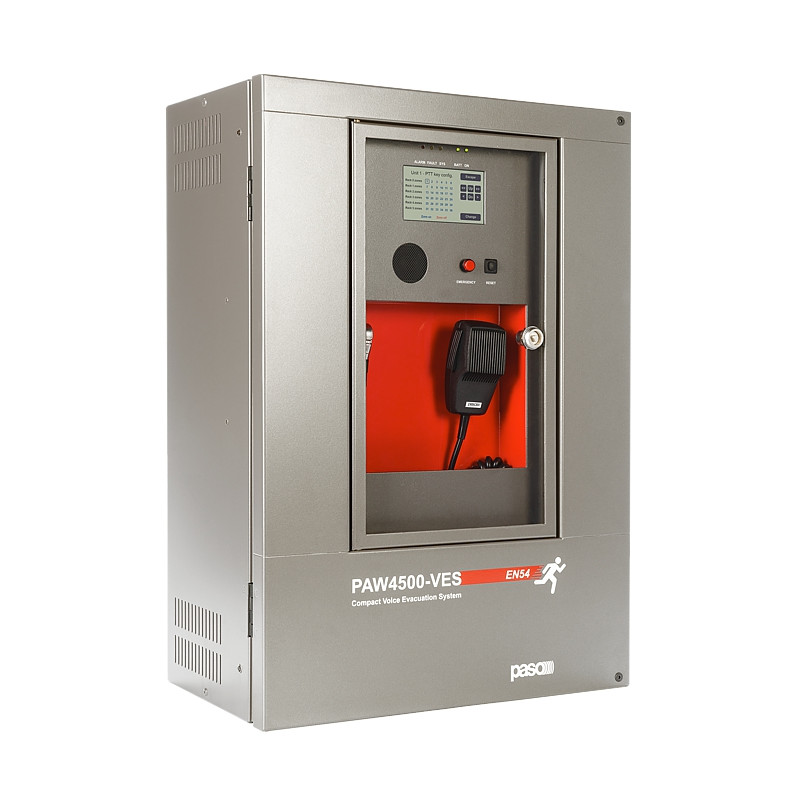

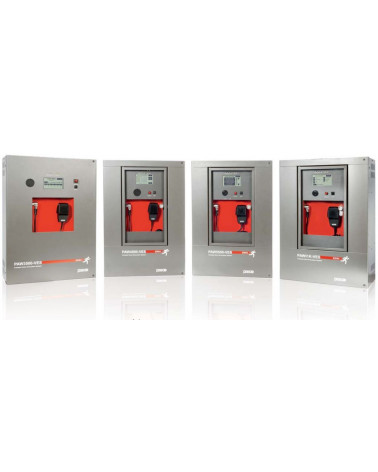

Compact Voice Evacuation Systems, 6 zones

For evacuation systems EN54, 500W Wall mounting


Do you have questions about this product? Contact our support:

  • Audio rated power: 500 W freely distributed between the zones up to a maximum of 250W (for each zone).
  • 4.3” touch screen back-lighted display for alert & evacuation zone selection, levels adjustment, settings and failure visualization.
  • Fireman’s monitored microphone on the front panel (included). Sending of EVACUATION and ALERT pre-recorded messages.
  • 7 monitored control inputs, each of which is confi gurable to play evacuation and/or alert messages, programmable for each zone, or for the reset of the messages.
  • 1 VOX input / 3 confi gurable relay outputs. Double output A+B per zone.
  • Secure front-panel button for operating the emergency system complete with LED indicator. Front-panel reset button.
  • Possibility to source either BGM or paging announcements from an auxiliary input or microphone. Possibility to connect up to 16 paging units. Possibility to connect up to 4 remote emergency microphone units or, as an alternative, up to 2 touch screen remote emergency microphone units.
  • Possibility to connect further PAW4500-VES (up to 6 units). EN54-4 certifi ed internal battery charger unit for 24Vdc secondary power supply (batteries not supplied).
  • Industry-standard 19” rack-mounting format (optional).
