PAW2251-V

copy of Wall mounted integrated Voice Evacuation System - 100 W, 1 zone

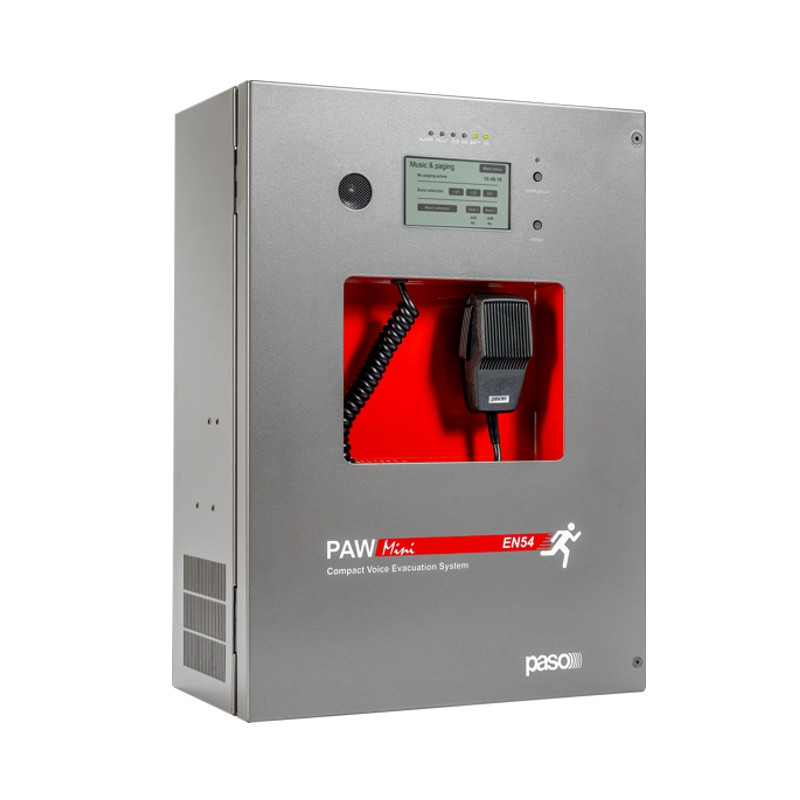

Wall mounted integrated Voice Evacuation System - 250 W, 1 zone (A+B)

The PAW1000-VES series of the new PAW Mini range of integrated voice evacuation systems for emergency facilities, has been specifically designed for wall-mounting and equipped with control units, certified in compliance with EN 54-16:2008 / EN 54-4 standards



Do you have questions about this product? Contact our support:



sat_consultas@egiaudio.com

Audio rated power: 500 W freely distributed between the zones up to a maximum of 250W (for each zone). 4.3” touch screen back-lighted display for alert & evacuation zone selection, levels adjustment, settings and failure visualization. Fireman’s monitored microphone on the front panel (included). Sending of EVACUATION and ALERT pre-recorded messages. 7 monitored control inputs, each of which is confi gurable to play evacuation and/or alert messages, programmable for each zone, or for the reset of the messages. 1 VOX input / 3 confi gurable relay outputs. Double output A+B per zone. Secure front-panel button for operating the emergency system complete with LED indicator. Front-panel reset button. Possibility to source either BGM or paging announcements from an auxiliary input or microphone. Possibility to connect up to 16 paging units. Possibility to connect up to 4 remote emergency microphone units or, as an alternative, up to 2 touch screen remote emergency microphone units. Possibility to connect further PAW4500-VES (up to 6 units). EN54-4 certifi ed internal battery charger unit for 24Vdc secondary power supply (batteries not supplied). Industry-standard 19” rack-mounting format (optional).

PAW2251-V
