10" Active subwoofer with bluetooth and DSP, 100 W biamplified


Do you have questions about this product? Contact our support:

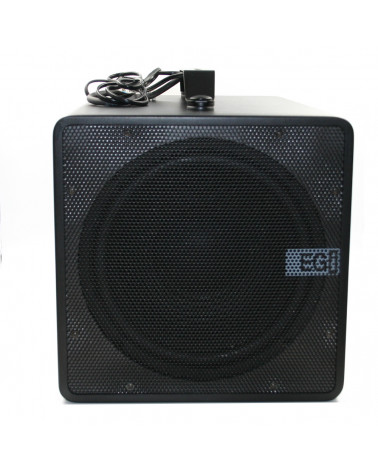

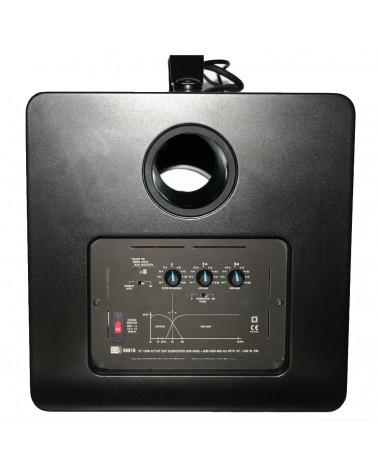

10" Active  subwoofer, 100 W total power. 10" Bass speaker with bass reflex, for sub bass frequencies. Power output amplified for 50 W; 100 V Hi-Mid speakers. Power output amplified for internal bass speaker 50 W. 3 Types of inputs and priorities: - EGi PIN audio with 1st priority. - Line IN audio with 2nd priority. - Bluetooth A2DP with 3rd priority. Crossover filter between 50 and 200 Hz. DSP with Soft Clip system to cancel distortions to peak signals. It incorporates handle with silent blocks for placement on ceilings or walls. Metal grille speaker protection. Finish: matte black.


Data sheet

Frequency response (@ -6dB)
27 ÷ 370 Hz
Total power active subwoofer
100 W (RMS); 200 W peak
Subwoofer Speaker max. power (RMS)
50 W (RMS); 100 W peak
10" bass reflex subwoofer
Hi-Mid gain power (RMS)
06817: 50 W; 100 V
Sensitivity Average (1 m dB SPL)
90 dB (max peak 110 dB SPL)
Cabinet type
Bass Reflex
Active filter crossover
50 - 200 Hz Subwoofer / 50 - 20000 Hz Hi-Mid
Input audio signals
BT (Bluetooth A2DP) Line IN (500 mV) PIN (3 V audio/7 Vdc)
Main power selection
115 or 230 V~; 50/60 Hz
Power consumption
2 A (115 V~) / 1 A (230 V~)
13.5 Kg
Dimensions (mm)
300 x 300 x 500 mm
