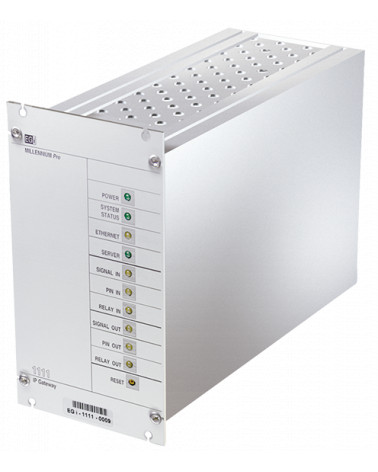

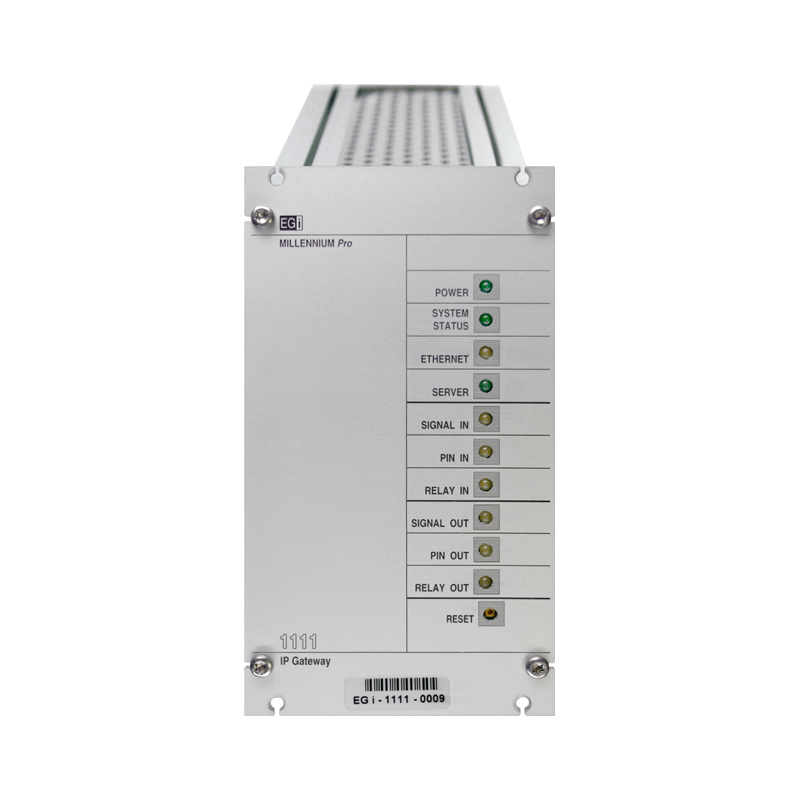

1111 Módulo de audio IP


IP Gateway for calls messages and music by Ethernet


New universal, stand-alone module for sending IP audio and voice anywhere. Applications: IP Audio Transmitter / Receiver. VoIP transmission module for public address announcements. Compatible with IP PBX. Management and control of background music priorities, VoIP or other audio channels (Multicast). 8 Gb local music player, IP streaming and mobile devices via IOS and DLNA (Android) applications. Add an audio programme via Wifi to all EGi Audio systems.


Do you have questions about this product? Contact our support:



Audio interface module via Ethernet IP networks, with Mono-Hi-Fi audio quality. Operation message priority on environmental music. 3 types of function:

  • - Customer VoIP, Unicast or Multicast.
  • - Gateway IP Hi-Fi sound audio quality similar to mono CD in Multicast.
  • - Hi-Fi Player music: Local or Internet streaming, through differents extensions files like (WAV, MP3 ...) and Internet radio.

Internal memory and network hard disk 8 GB for audio.

RJ45 connection at 10/100 Mb Ethernet speed.

USB 2.0 connection for future applications.

Upgradeable firmware.

Configuration via web page.

Remote control from multimedia equipment as smartphone, tablet and PC.

Power supply 15V  via standard coaxial connector or terminal block.

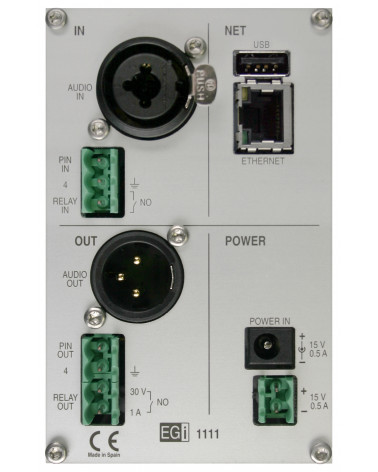

Audio input and output XLR connectors or PIN strips.

Auxiliary input function and relay output. Finish: aluminium.


Data sheet

Maximum consumption
150 mA
Power Supply
15V (or PoE WITH REFERENCE 1112)
Input and output XLR sensitivity
0.3 - 1.2 Vac (audio)
Network speed
10/100 Mb
Rack units
14 UP; 3 UA
