1601

IP Horn 30W

HiFi IP Ethernet horn speaker. 2 ways, 30 W. IP66

Do you have questions about this product? Contact our support:

sat_consultas@egiaudio.com

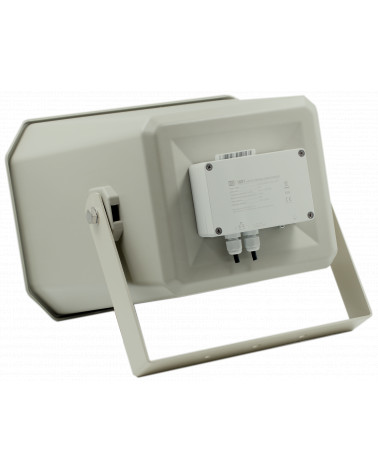

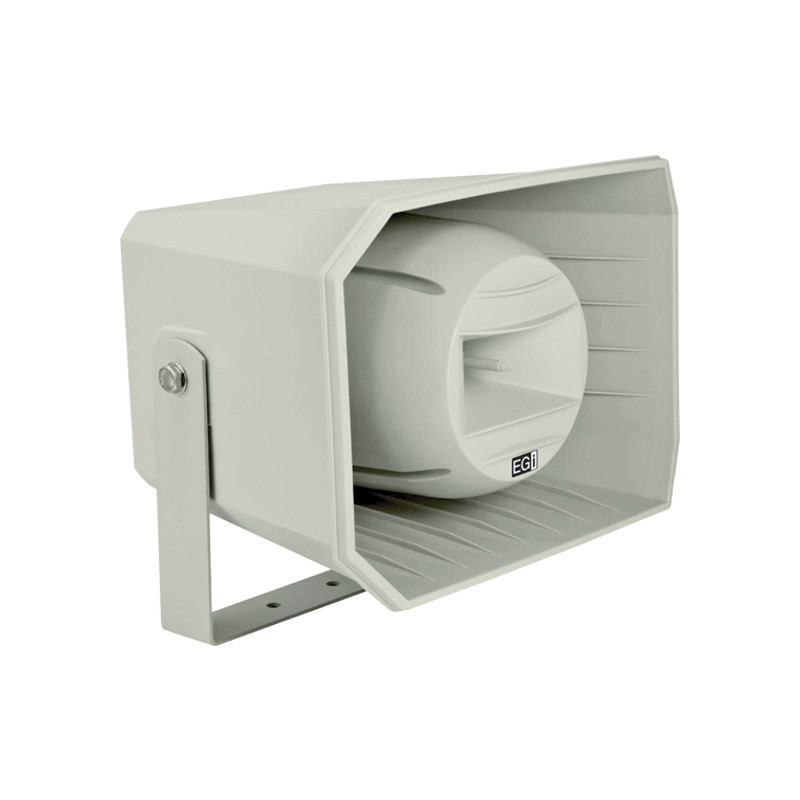

Audio IP horn speaker for indoor and outdoor installation.

Audio quality thanks to its wide frequency response that makes it possible to play music and announcements over long distances.

Automatically playback pre-recorded messages by external Relay IN signal or by the event scheduler.

Manual playback of messages from the 1211 console.

Compatible with Millennium IP control software that allows you to load the installation map and distribute each horn speaker on it.

The PoE power supply makes easy the installation.

Self Test and verification of electronics and speaker for issuing messages correctly.

Output voltage free programmable relay and to activate other elements of the installation.

Operating modes:

- Internal audio player (WAV, MP3, internet radios, …).

- Airplay/DLNA.

- VoIP, Unicast or Multicast client.

- RTP y SIP protocols.

- Modbus compatible.

- Event Scheduler.

6 GB internal free memory to store audio.

Updatable firmware.

Configuration through web interface accessible from PC, Smartphone or Tablet.

Finish: ABS, light grey.

Reference 1601

Data sheet

Power Supply: Through Ethernet PoE IEEE 802.3 bt type 3, 60 W (automatic power negotiation)
Audio sample frequency rate: 44.1 KHz – 16 bits
Degree IP protection: IP66
Frequency response (@ -6dB): 118 Hz — 16.7 KHz
Audio power: 30 W (RMS)
Max. power consumption: 45 W
Relay In: Join GND with IN to activate
Relay Out: 30 Vdc — 1 A
Connections: Punch down connector multi-wire cable. 4-way terminal block: IN/OUT relay
Sensitivity (1W/1m): 100 dB
Maximun sound pressure level (SPL): 115 dB
Speaker driver: 6” + 1.5” tweeter
Coverage angle: 91º @ 4 KHz; 120º @ 8 KHz
Operation Conditions: -20ºC a / to 60ºC
IP network speed: 10/100 Mb (min. CAT5e)
Control software: Software: 1810 Millennium IP Lite, 1811 Millennium IP Pro
